Pick up now available in store. Or please call, email to discuss delivery.

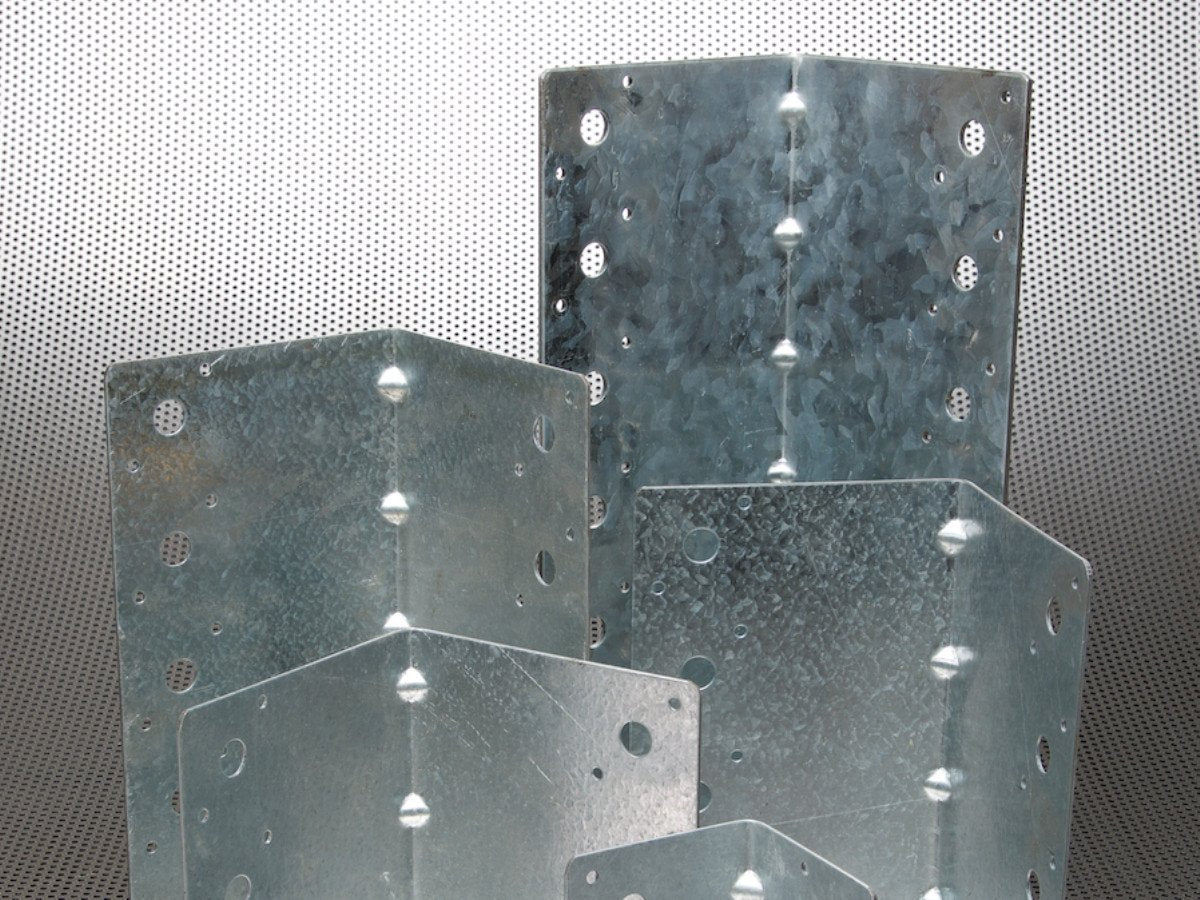

All Standard Brackets are made from 1.6mm thick metallic coated steel having a minimum of 250MPa tensile strength and a zinc coating class of Z275. The zinc coating makes these brackets suitable for indoor and outdoor use.
There are 3 basic sizes to choose from. These being 60 x 60mm leg lengths, 60 x 100mm leg lengths or 100 x 100mm leg lengths.
Each variety is further available in a number of different lengths to suit any application imaginable. Lengths are available in the following sizes: 86, 136, 186, 236, 286mm.
Design joint capacities (maximum Limit State Design loads) have been calculated in accordance with the appropriate relevant standards, and have been certified by an external structural engineering company accordingly. The following Australian Standards have been used:
Please refer to the separate downloadable "Design Capacity" documents that can be found below.
Choose from 2 convenient pack sizes depending on the job that you are carrying out, or select multiples of the standard pack sizes for larger jobs.
Dimensioned drawings for each of the Standard Bracket sizes can be viewed and downloaded below.
Standard Bracket 60 x 60mm Legs - Drawing No. FB6060SD
Standard Bracket 100 x 60mm Legs - Drawing No. FB60100SD
Standard Bracket 100 x 100mm Legs - Drawing No. FB100100SD
Design Capacity - Bolted Jointing
Design Capacity - Coach Screw Jointing
Design Capacity - Screw Jointing
