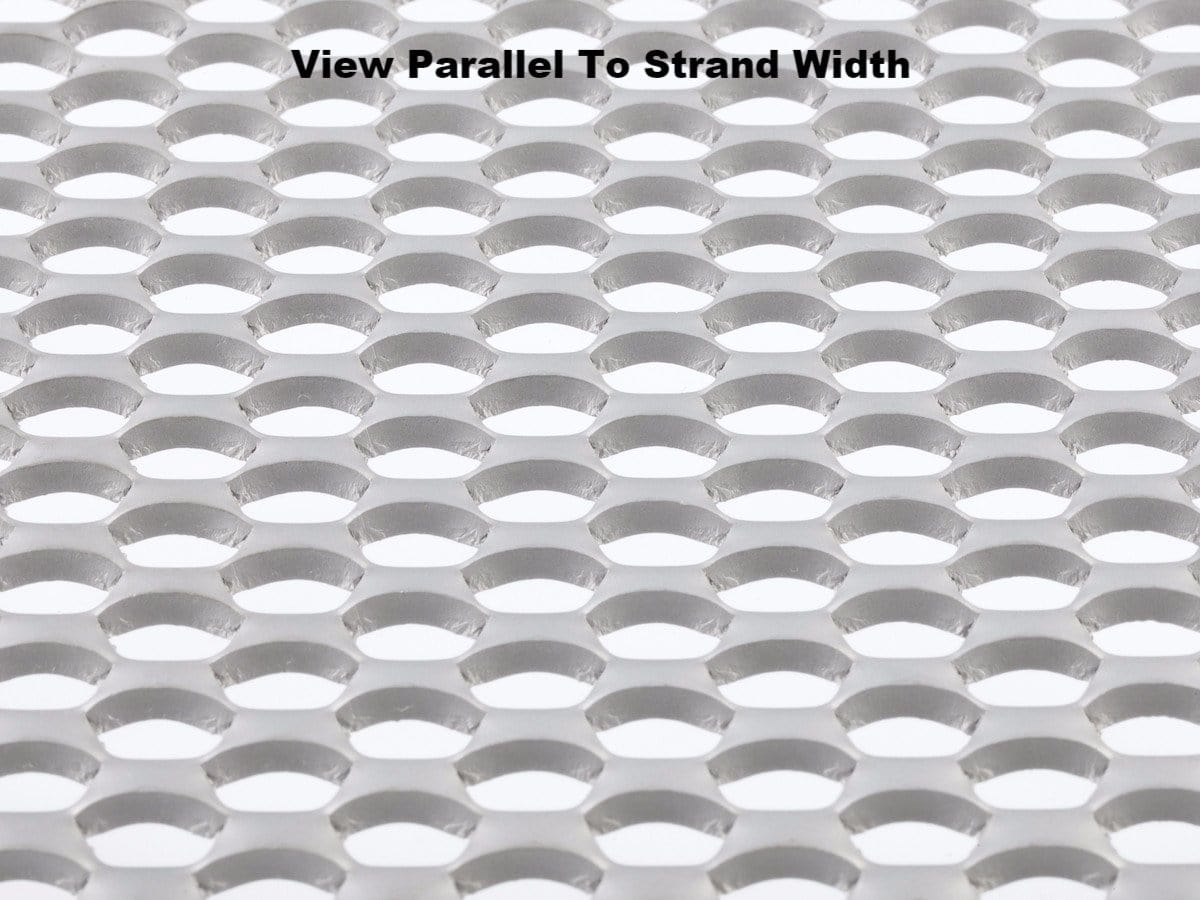

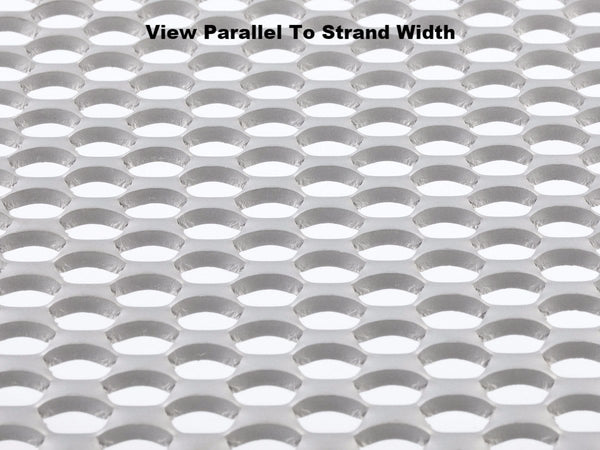

RH3040 Expanded Mesh

RH3040 1700SWM X 1200LWM

Continue Shopping or Checkout

MAXIMESH® RH3040 - Specifications:

*** All mesh (common and non-common sizes) are normally made to order.
Product Code RH3040
Material Thickness (mm) 3.0
Strand Width (mm) 4.0

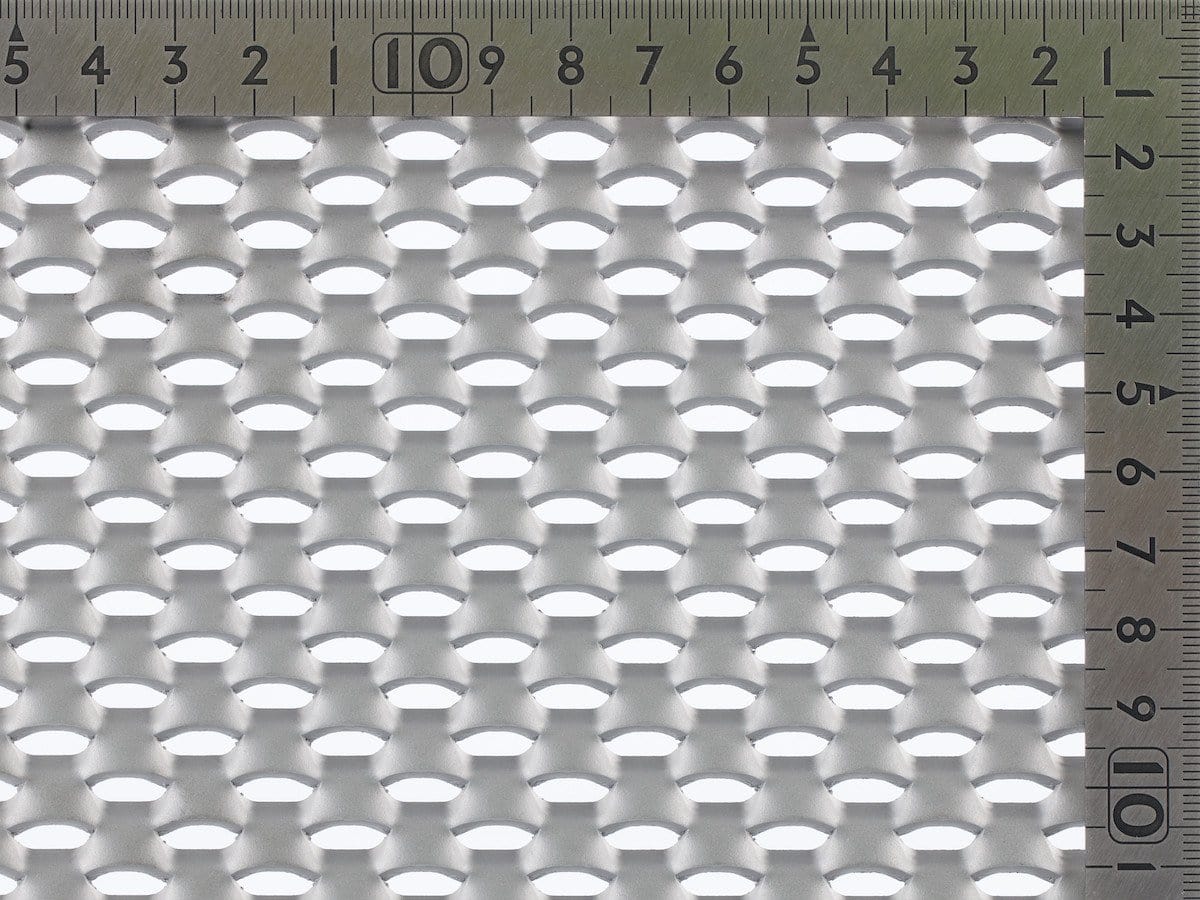

Pattern SWM (mm) 12
Pattern LWM (mm) 18.75
Mass (kg/m²) for Mild Steel 15.7
Free Air Space (%) 31 - 42

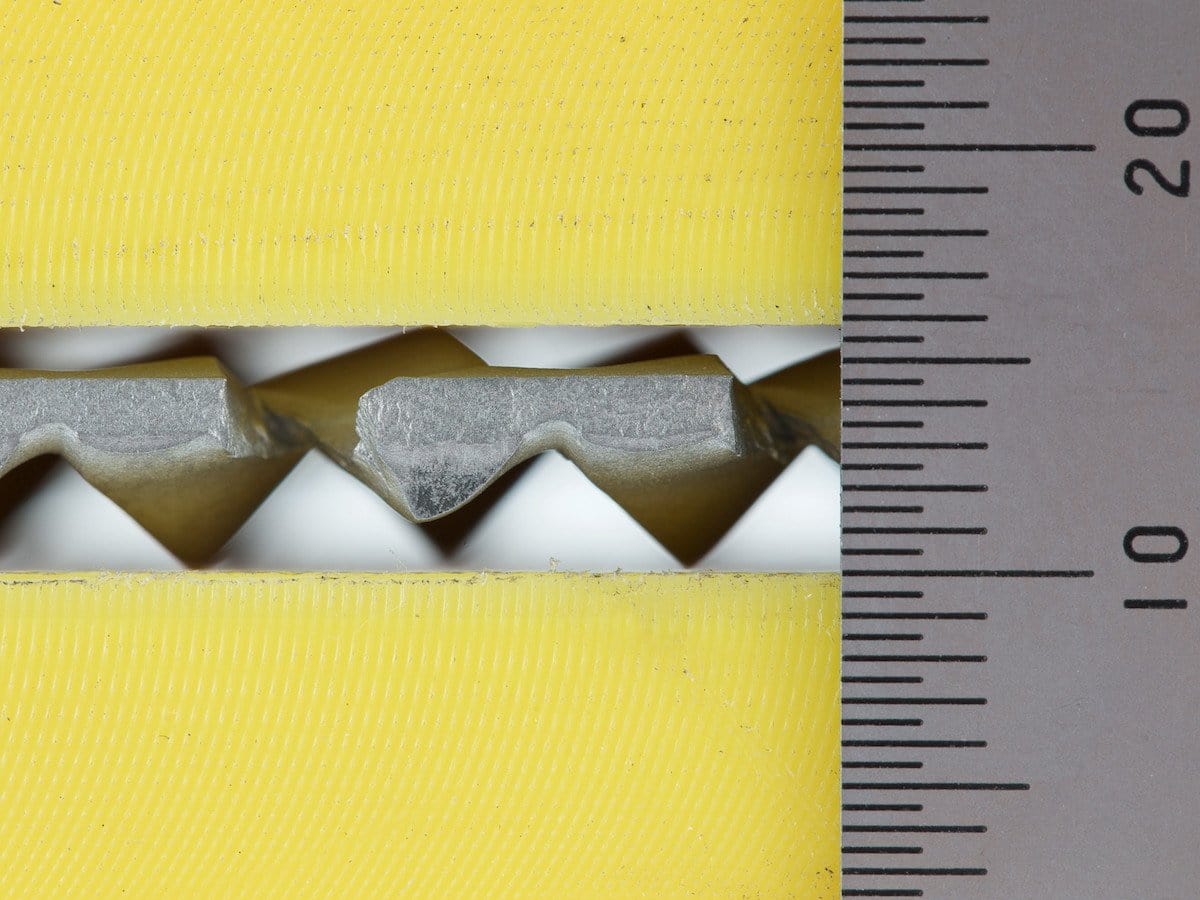

Overall Height (Approx. mm) 5.8

Standard Sheet Size (mm) SWM x LWM

See List

Notes:

  • Standard sizes and materials are listed, which are manufactured to standard tolerances as outlined in the Expanded Metal – Manufacturing Tolerances page.
  • Many other non-common sizes can be manufactured dependent on machine capabilities.  Please call us to discuss your requirements.
  • All mesh (common and non-common sizes) are normally made to order.
  • Hot Dip Galvanised mesh is also available.  This is a service that is outsourced which we are happy to arrange.  It will be treated as a special order and usually takes an additional week to complete.  Please call us with your inquiry and we will provide you with a price based on mesh size and quantity requirements.
  • Listed prices are in AUD, are based on an order quantities of 1-10 mesh sheets, and do not include delivery.
  • All orders of 1-10 mesh sheets may attract a set up cost if not currently stocked.
  • For pricing of mesh sheets in larger order quantities (11+) and/or obtaining a quotation for delivery, please contact us to discuss your requirements.
  • All prices are correct at time of publishing, and are subject to raw material costs and availability.

Pick up now available in store. Or please call, email to discuss delivery.
